MBTiles Raster and Vector Data Stores

Adding an MBTiles Mosaic Raster Data Source

When the extension has been installed, :guilabel:MBTiles` will be an option in the Raster Data Sources list when creating a new data store.

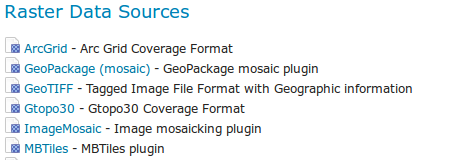

MBTiles in the list of raster data sources

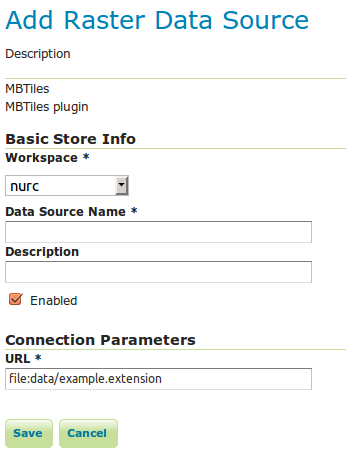

Configuring an MBTiles data source

• • Option
  • Description
• • Workspace
  • Name of the workspace to contain the MBTiles Mosaic store. This will also be the prefix of the raster layers created from the store.
• • Data Source Name
  • Name of the MBTiles Store as it will be known to GeoServer. This can be different from the filename.
• • Description
  • A full free-form description of the MBTiles store.
• • Enabled
  • If checked, it enables the store. If unchecked (disabled), no data in the GeoPackage Mosaic Store will be served from GeoServer.
• • URL
  • Location of the MBTiles file. This can be an absolute path (such as file:C:\Data\landbase.mbtiles) or a path relative to GeoServer's data directory (such as file:data/landbase.mbtiles).

Adding an MBTiles vector tiles Data Store

When the extension has been installed, MBTiles with vector tiles will be an option in the Vector Data Sources list when creating a new data store.

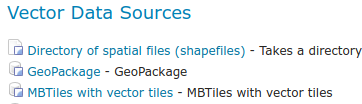

MBTiles in the list of vector data sources

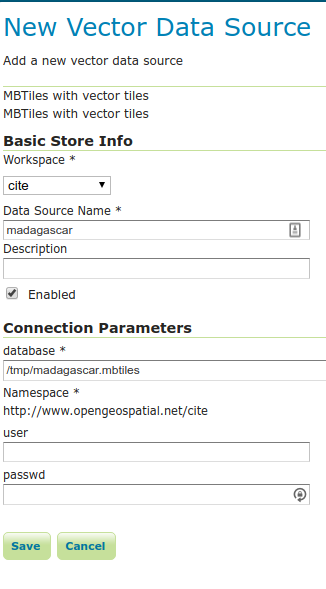

Configuring an MBTiles data store

• • Option
  • Description
• • database
  • Path to the MBTiles file
• • user
  • Optional username
• • passwd
  • Optional password

After configuration the store will allow setting up the layers, as they get described in the json entry of the metadata table.

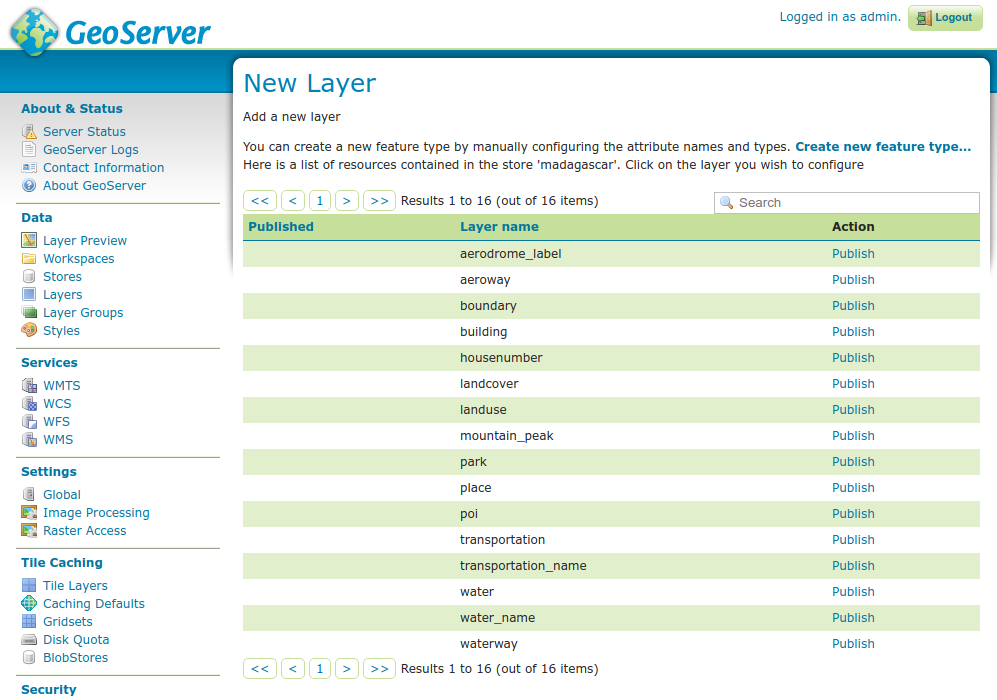

Configuring layers out of a MBTiles store

Each vector tile contains data for all the layers described, the store maintains a "soft cache" of parsed tiles to avoid re-parsing them from the binary on multi-layer rendering operations.
