OGC API - Tiled features demonstration

This module provides an example of extending the OGC API - Features module with a building block from OGC API - Tiles, used for tiled access to raw vector data (the vector tiles modules is included).

This module is not required to use vector tiles, it's also possible to use OGC API - Tiles directly, see OGC API - Tiles, along with the installation of the vector tiles extension.

Installing the GeoServer OGC API tiled features module

1. Login, and navigate to About & Status > About GeoServer and check Build Information to determine the exact version of GeoServer you are running.

2. Visit the website download <download> page, change the Development tab, and locate the nightly release that corresponds to the GeoServer you are running.

   Follow the Community Modules link and download ogcapi-tiled-features zip archive.

   • {{ version }} example: ogcapi-tiled-features

   The website lists active nightly builds to provide feedback to developers, you may also browse for earlier branches.

3. Extract the contents of the archive into the WEB-INF/lib directory in GeoServer.

   Warning

   Verify that the version number in the filename corresponds to the version of GeoServer you are running (for example geoserver-{{ version }}-ogcapi-tiled-features-plugin.zip above).

4. Restart GeoServer.

   On restart the services are listed at http://localhost:8080/geoserver

Extensions

Upon installation, the OGC API - Features API will show the following extensions:

• Conformance classes are expanded with OGC API - Tiles ones

• Tile matrix sets links from the home page

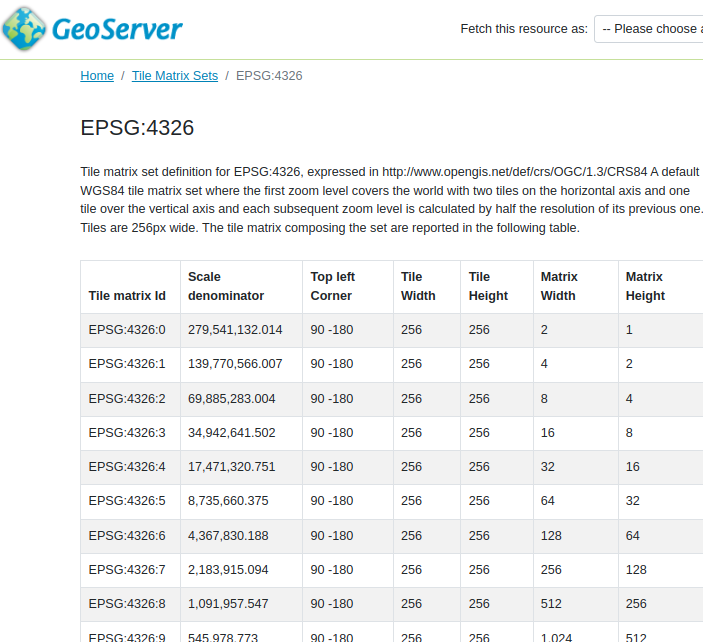

  Tile matrix EPSG:4326 definition

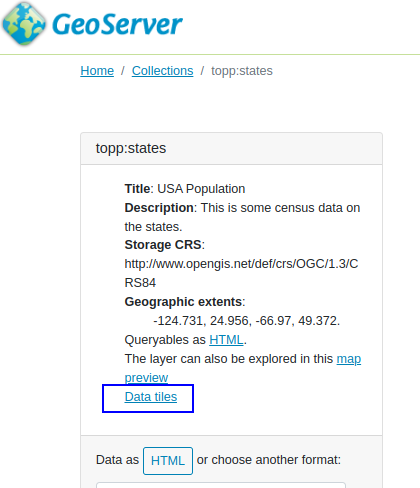

• Collections with vector tiles enabled will have a "data tiles" link pointing at the tiles endpoint

  Data tiles link
