Publishing a style

This tutorial walks through the steps of defining a style and associating it with a layer for use.

Note

This tutorial assumes that GeoServer is running at http://localhost:8080/geoserver.

Data preparation

First let's gather the data that we'll be publishing.

1. Complete the previous tutorials:
   • Publishing a GeoPackage defining the tutorial:countries layer
   • Publishing a Image defining the tutorial:shaded layer
   • Publishing a Layer Group defining the tutorial:basemap layer

Create a style

1. Navigate to Data > Style page.

   Styles

2. This page displays a list of styles, including the workspace the style belongs to.

   Note

   Styles groups are allowed to be "global", allowing a style to be defined and be used by any layer.

3. At the top of the list Styles list, locate and click the Add a new style link.

4. Locate Style Data and define the style:

5. • Name
   • background
6. • Workspace
   • tutorial
7. • Format
   • SLD

   Style data

8. Locate Style Content and carefully:

   • Under Generate a default style select Polygon

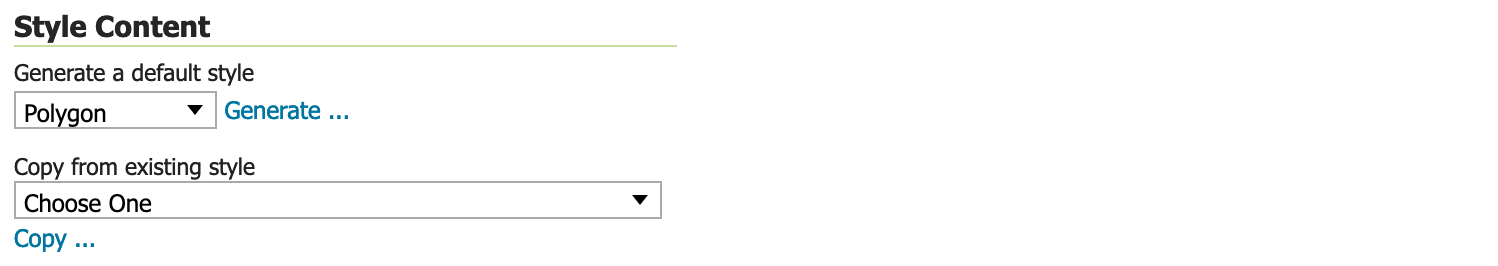

   Style Content configured to generate a polygon default style.

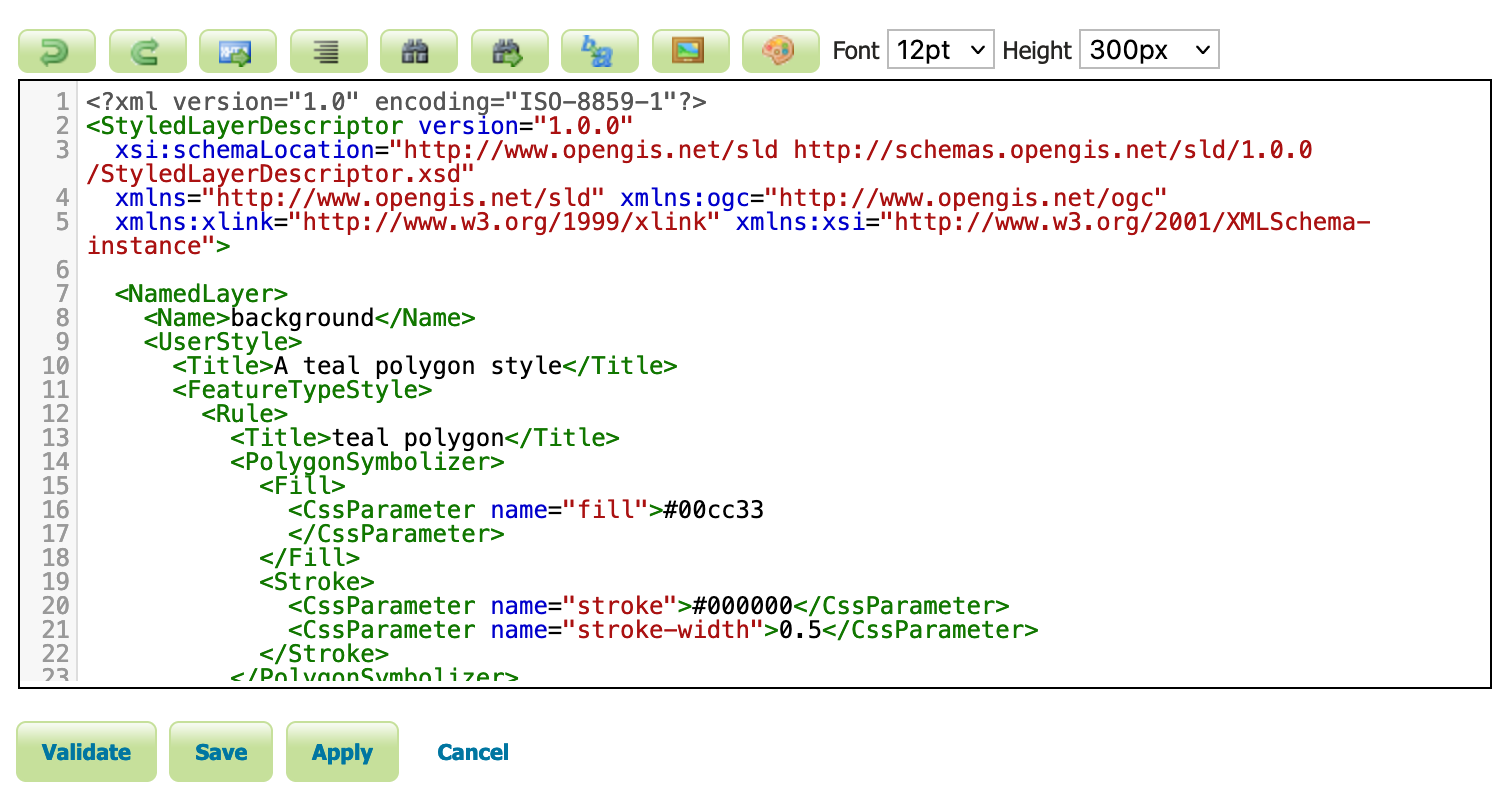

9. Under Generate a default style locate and click the Generate link to populate the style editor with a generated outline of a polygon style.



10. Press the Apply button to define this style.

    Now that the style is defined there are more options for interactively working with the style.

11. Change to Publishing tab.

    • Use the search to filter with tutorial to locate tutorial:countries.
    • Check the Default checkbox for tutorial:countries to use the tutorial:background style the default for this layer.

    Style publish

12. Next to Publishing navigate to the Layer Preview tab.

    • Locate the Preview on layer and click on the link to select tutorial:countries as a dataset to use when editing the style.

    Styled editor Layer Preview tab

13. Edit your style by inserting fill-opacity value of 0.25.

    ~~~xml {% include "./files/background.sld" %} ~~~

14. Press Apply to edit your style and check the resulting visual change in the layer preview.

15. Experiment with:

    • Updating the title information, watching the displayed legend change
    • Full screen mode for side-by-side editing

    Full screen mode

16. When this style is used as part of the tutorial::basemap the fill-opacity allows the shaded relief detail to be shown.

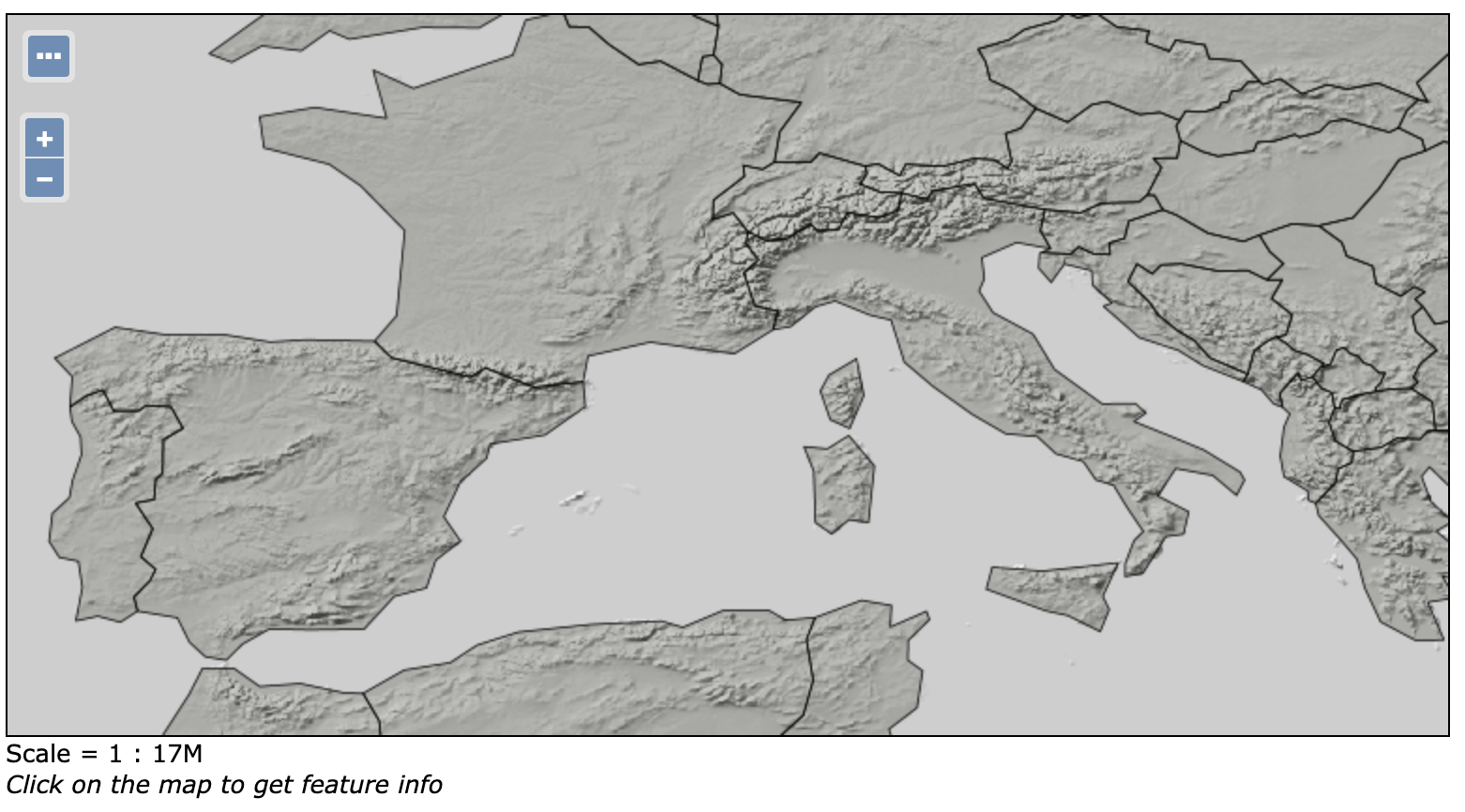

    Basemap with background style applied to countries
