Polygon symbolizer

The polygon symbolizer styles polygon (2-dimensional) features. It contains facilities for the stroke (outline) of a feature as well as the fill (inside) of a feature.

Syntax

The full syntax of a polygon symbolizer is:

symbolizers:
- polygon:
    fill-color: <color>
    fill-opacity: <expression>
    fill-graphic:
      <graphic_options>
    stroke-color: <color>
    stroke-width: <expression>
    stroke-opacity: <expression>
    stroke-linejoin: <expression>
    stroke-linecap: <expression>
    stroke-dasharray: <float list>
    stroke-dashoffset: <expression>
    stroke-graphic:
      <graphic_options>
    stroke-graphic-fill:
      <graphic_options>
    offset: <expression>
    displacement: <expression>
    geometry: <expression>
    uom: <text>
    x-labelObstacle: <boolean>
    x-composite-base: <boolean>
    x-composite: <text>
    x-inclusion: <text>

where:

{% include-markdown "./include/stroke.md" %}

{% include-markdown "./include/fill.md" %}

• • Property
  • Required?
  • Description
  • Default value
• • offset
  • No
  • Value in pixels for moving the drawn line relative to the location of the feature.
  • 0
• • displacement
  • No
  • Specifies a distance to which to move the symbol relative to the feature. Value is an [x,y] tuple with values expressed in pixels, so [10,5] will displace the symbol 10 pixels to the right, and 5 pixels down.
  • [0,0]

{% include-markdown "./include/symbol.md" %}

The following properties are equivalent to SLD "vendor options".

{% include-markdown "./include/misc.md" %}

Additional "vendor options" properties for Color compositing and color blending:

{% include-markdown "./include/composite.md" %}

Additional "vendor options" properties for Rendering Selection:

{% include-markdown "./include/inclusion.md" %}

Examples

Basic polygon

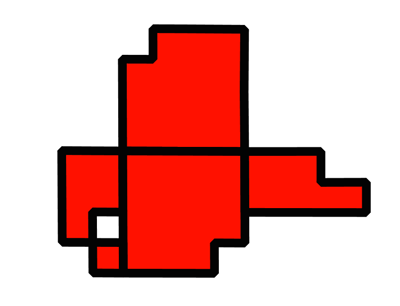

Polygon symbolizers have both a stroke and a fill, similar to marks for point symbolizers. The following example draws a polygon symbolizer with a red fill and black stroke with beveled line joins for the stroke:

feature-styles:
- name: name
  rules:
  - title: fill-graphic
    symbolizers:
    - polygon:
        fill-color: '#FF0000'
        fill-opacity: 0.9
        stroke-color: '#000000'
        stroke-width: 8
        stroke-opacity: 1
        stroke-linejoin: bevel

Fill with graphic

The fill-graphic property is used to fill a geometry with a repeating graphic. This can be a mark or an external image. The x-graphic-margin option can be used to specify top, right, bottom, and left margins around the graphic used in the fill. This example uses two sets of repeating squares with different offset values to draw a checkerboard pattern:

name: checkers
feature-styles:
- name: name
  rules:
  - title: fill-graphic
    symbolizers:
    - polygon:
        stroke-width: 1
        fill-graphic:
          symbols:
          - mark:
              shape: square
              fill-color: '#000000'
          size: 8
        x-graphic-margin: 16 16 0 0
    - polygon:
        stroke-width: 1
        fill-graphic:
          symbols:
          - mark:
              shape: square
              fill-color: '#000000'
          size: 8
        x-graphic-margin: 0 0 16 16

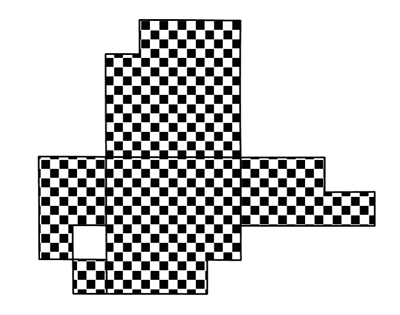

Checkered fill

Randomized graphic fill

Normally, the graphic used for the fill-graphic property is tiled. Alternatively, one can scatter this image randomly across the fill area using the x-random option and associated other options. This could be used to create a speckled pattern, as in the following example:

name: speckles
feature-styles:
- name: name
  rules:
  - title: fill-graphic
    symbolizers:
    - polygon:
        stroke-width: 1
        fill-graphic:
          symbols:
            - mark:
                shape: circle
                fill-color: '#000000'
          size: 3
          x-random: grid
          x-random-seed: 2
          x-random-tile-size: 1000
          x-random-rotation: free
          x-random-symbol-count: 1000

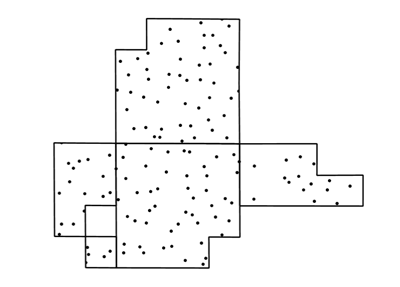

Randomized graphic fill
